How does a Light Weight Deflectometer work?
Light Weight Deflectometer measurement principle
A Light Weight Deflectometer (LWD) is a portable soil testing device used to evaluate the compaction quality, bearing capacity, and stiffness of soils and unbound construction materials directly on site. It has become one of the most widely used tools for quality control in earthworks, road construction, railway projects, utility trench backfilling, pipeline construction, and landscaping.
The operating principle of a Light Weight Deflectometer is simple, fast, and highly reliable. A calibrated falling weight is dropped from a predefined height onto a loading plate resting on the ground surface. The resulting impact generates a short dynamic load pulse that simulates the stress created by passing traffic or construction equipment.
During each test, the TERRATEST 9000 Light Weight Deflectometer precisely measures both the applied impact force and the corresponding ground deflection. This is accomplished using a high-precision load cell and geophone system that monitor the behavior of the tested material during the loading cycle.
Advanced onboard electronics instantly analyze the measurement data and calculate important geotechnical parameters, including:
- Dynamic deformation modulus (Evd)
- Surface deflection
- Bearing capacity
- Soil stiffness
- Compaction quality
- Load distribution characteristics

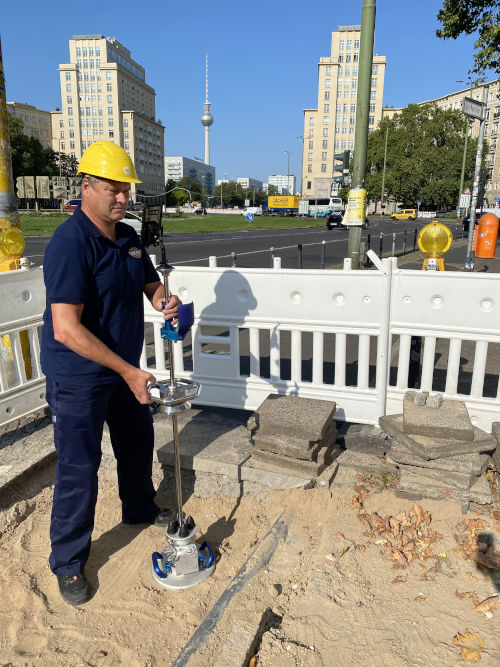

Step-by-Step Testing Procedure
The measurement process is straightforward and can be completed by a single operator:
- Position the Loading Plate
The loading plate is placed on the prepared surface to be tested. For optimum contact, a thin leveling layer of fine sand may be used when necessary.
- Set Up the Light Weight Deflectometer
The guide rod, falling weight, and measuring electronics are assembled. The TERRATEST 9000 LWD automatically checks all system components and is ready for testing within seconds.
- Perform the Impact Measurements
The falling weight is released from the specified height, generating a controlled impact force. Typically, three seating drops are followed by three measuring drops to obtain reliable and repeatable test results.
- Measure Ground Response
The integrated sensors record the force applied to the ground and the resulting surface deflection with extremely high accuracy. This data forms the basis for calculating the Evd value and other important parameters.
- Instant Test Results
Within seconds, the instrument automatically displays the measured values. Results can be stored, printed, transferred to a smartphone, or uploaded to cloud-based reporting systems for further analysis and documentation.
Advantages of Light Weight Deflectometer Testing
Compared with traditional plate load testing methods, a Light Weight Deflectometer offers significant advantages:
- Test results available in less than two minutes
- No reaction vehicle required
- No counterweights or heavy equipment needed
- Simple operation by one person
- Immediate quality control directly on the construction site
- Reduced testing costs
- High measurement repeatability
- Digital data storage and reporting
- Suitable for continuous construction quality assurance
Applications of the Light Weight Deflectometer
The Light Weight Deflectometer is used in a wide range of civil engineering and construction applications, including:
- Road construction
- Highway and pavement projects
- Earthworks and embankment construction
- Railway track construction
- Utility trench compaction control
- Pipeline installation
- Fiber optic and broadband network projects
- Airport construction
- Sports field construction
- Landscaping and gardening projects
Why Choose the TERRATEST 9000 Light Weight Deflectometer?
The TERRATEST 9000 LWD combines advanced sensor technology, high measurement accuracy, and intuitive operation in a robust field instrument. The system measures force and deflection simultaneously using a precision load cell and geophone, ensuring reliable and internationally accepted test results.
With integrated smartphone connectivity, GPS documentation, cloud-based reporting options, and compliance with major international testing standards, the TERRATEST 9000 provides construction professionals with a fast and efficient solution for soil compaction testing and bearing capacity assessment.
The complete testing procedure typically requires less than two minutes, allowing contractors, laboratories, and engineers to verify compaction quality and bearing capacity immediately on site without delays caused by external testing services.
